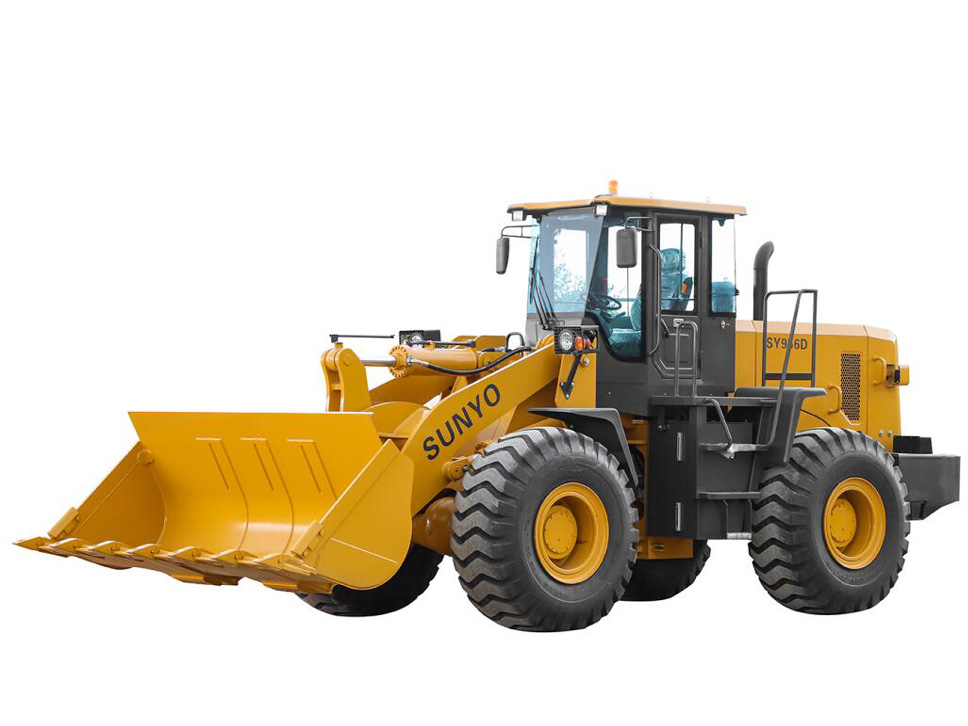

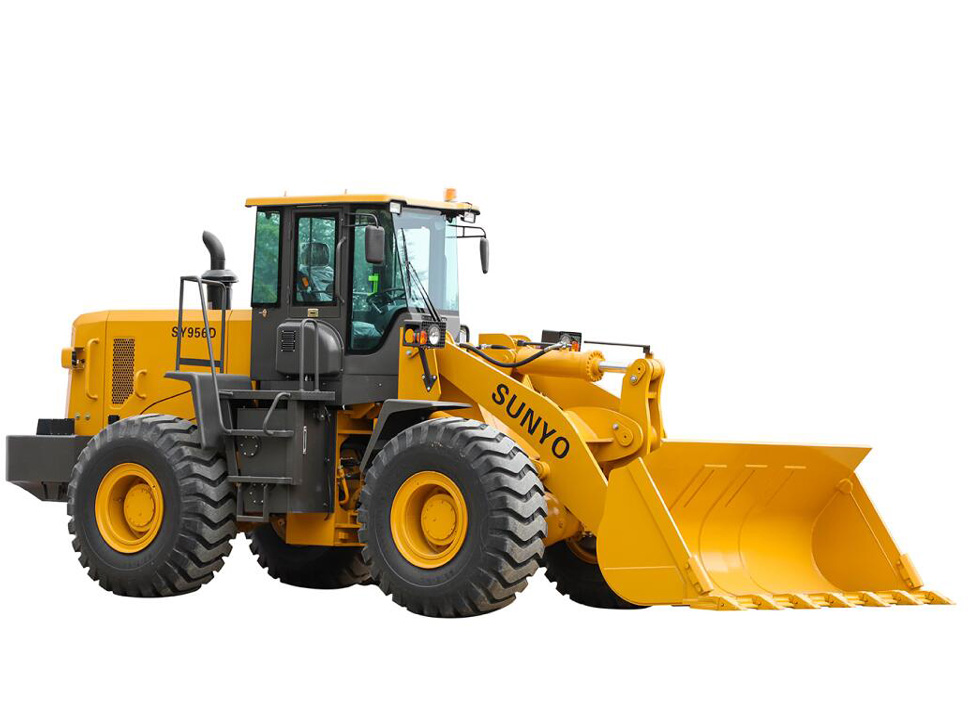

Wheel Loader SY956D

Engine Model:

WEICHAI STYRE WD10G220E23

Engine Power:

162Kw

Operating Weight:

16500Kg

Dimension:

8360X3050X3482mm

Bucket Capacity:

3 Cubic Meter

Rated Load:

5000 Kg

Wheel Loader SY956D

Product Description

Product Parameter

Product Descrition

Application Field:

Mining
Quarries & Aggregates
Heavy infrastructure
Road Construction
Building
Recycling & Waste
Industrial Material Handing
Forestry
Agriculture & Landscaping

Feature:

Wheel Loader SY956D Main with:

WEICHAI engine; A/C ; Pilot control; Bucket capacity: 3 CBM; Rated load: 5000kg

Reliable

Planetary transmission with high transmission efficiency is used. Drive axle is adopted with rear axle swing design to provide strong bearing capacity and high reliability. 23.5-25 tyres, superior wear resistance are adopted, which are more suitable to heavy load working conditions in mines. Adopt advance Pilot Control System, Multiway valves,Quality pumps and hydraulic components which are reliable and highly efficient are adopted.

Energy Efficient

Energy-efficient low RPM engine meeting China II emission standard requirements and highly-efficient large-capacity torque converter are perfectly combined to realize comprehensive energy conservation by 20%;

Comfortable

With Air Condtion;
Cab space increased by 15%, indoor noise reduced to 80dB;
Mechanical suspended seat;
Curved glass with broad view

Convenient

Engine hood and heat dissipation hood are designed with a large opening respectively to provide larger space for maintenance;
Oil filter, fuel filter and air filter are arranged at the convenient position to facilitate maintenance.

Product Parameter
Operating Weight
16500 kg
Bucket capacity
3 m³
Rated load
5000 kg
Dimension (LxWxH)
8360 x 3050 x 3482 mm
Wheel base
3340 mm
Max.dumping height
3150 mm
Dumping distance
1250 mm
Engine Brand
Weichai Steyr
Engine Model
WD10G220E23
Rated power
162 kw
Maximum torque
860 N.m
Emission standard
China Phase II
Max.tractive force
152 KN
Max.breakout force
higher than 170 KN
Gears
4 forward/reverse shift
Maximum speed
38 km/h
Fuel tank capacity
300 L
Tire Model
23.5-25
Order Process
No.1 Confirm

Product performance
Product Price
Negotiation & Confirm

No.2 Payment

30% Paid by T/T as deposit, 70% paid by T/T before delivery; or LC at sight can be discussed.

No.3 Produce

SY956D wheel loader
produce time:20 days, also discussed according quantity

No.4 Inspection

Before delivery
Inspection and test
make sure quality

No.4 Delivery

by sea container
or by train container
40H container load 1 sets SY956D.

No.5 Service

when you need buy parts
when you need technical support ,we supply whenever you need.
