Tractor TD series

Engine Standard:

Euro 3

Gears:

16F + 8R

Clutch:

Double function

PTO:

Double speed

Drive type:

4 X 4

Steering:

Hydraulic

Tractor TD seires

Product Description

Product Parameter

Product Descrition

Application Field:

Agriculture & Landscaping

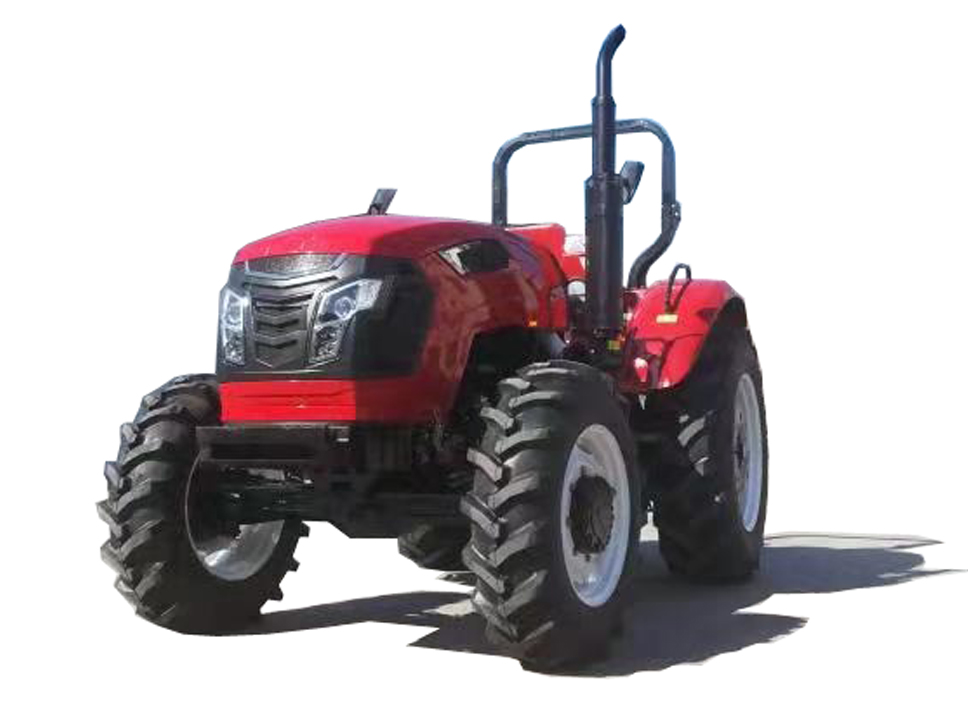

Tractor TD series


Main Features:

TD series tractor is designed for works on middle - scale farms and auxiliary works on large farmland.

Dynamic and fashionale appearance and HANWO patent luxury cab, with A/C or heater, provide you a safe, quite and comfortable driving condition.

Standard with 16F+8R shuttle shift gearbox, optional creeper type gear shift, to meet the requirements of more rational speeds;

Standard with flat floor, side console and suspension pedal to make more easy to drive.

Equipped with strong pressure device liter to ensure the best rotary tillage and plwing effect. force control, postion control or floating control is optional for different conditons.

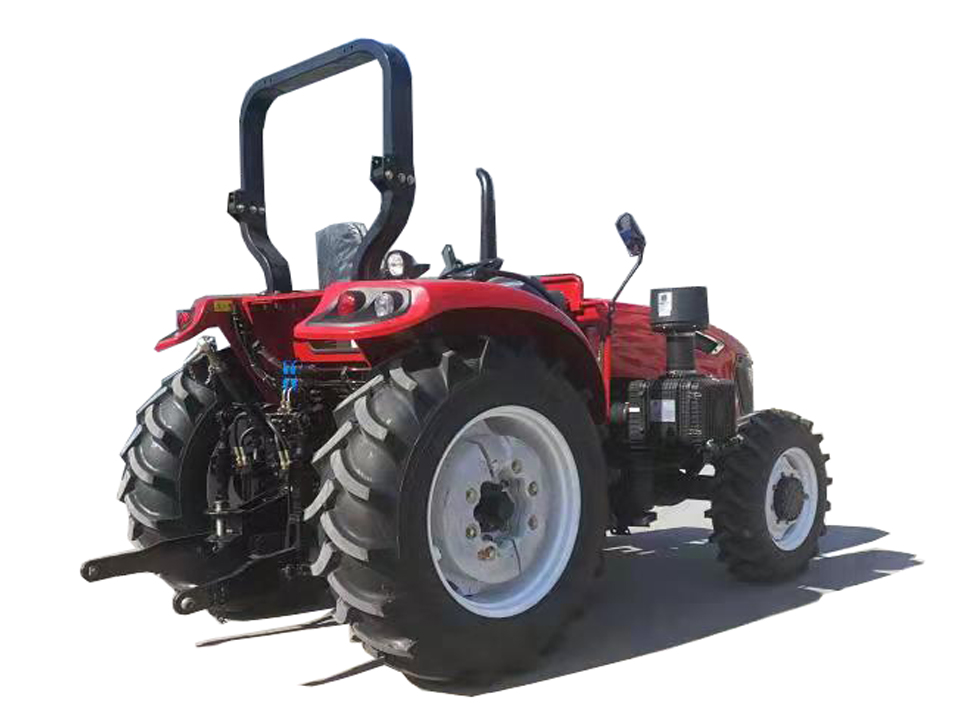

We use category 2 type three-point hitch, up to international standard; enhanced lifting arms and quick-change connectors improve the general stength while matching various implements.

Optional herringbone tires, radial tires or other type of tires to meet your needs of working condition.

Product Parameter
Model:
1004
Drive type:
4 X 4
Dimension::
4180X2050X2930 MM
Front wheel thread
1610 (usual) mm
Rear wheel thread
1608(usual) mm
Wheel Base
2480 mm
Min mass
4000 kg
Engine modeld
YTO LR4M3Z
Engine type
vertical,water cool, 4stroke.turbcharged
Rate power
66.2 kw
Tyre front/rear
12.4-24/16.9-34
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
16F+8R collar shift.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 760/850 L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
1104
Drive type:
4 X 4
Dimension::
4180X2050X2930 MM
Front wheel thread
1610 (usual) mm
Rear wheel thread
1608(usual) mm
Wheel Base
2480 mm
Min mass
4000 kg
Engine modeld
YTO LR4M3Z
Engine type
vertical,water cool, 4stroke.turbcharged
Rate power
80.8 kw
Tyre front/rear
12.4-24/16.9-34
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
16F+8R collar shift.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 760/850 L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
1204
Drive type:
4 X 4
Dimension::
4480X2050X2930 MM
Front wheel thread
1610 (usual) mm
Rear wheel thread
1608(usual) mm
Wheel Base
2480 mm
Min mass
4200 kg
Engine modeld
YTO LR6M5-23
Engine type
vertical,water cool, 4stroke.turbcharged
Rate power
88.2 kw
Tyre front/rear
12.4-24/16.9-34
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
16F+8R collar shift.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 760/850 L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
1304
Drive type:
4 X 4
Dimension::
4480X2050X2930 MM
Front wheel thread
1610 (usual) mm
Rear wheel thread
1608(usual) mm
Wheel Base
2480 mm
Min mass
4200 kg
Engine modeld
YTO LR6M5-23
Engine type
vertical,water cool, 4stroke.turbcharged
Rate power
95.6 kw
Tyre front/rear
12.4-24/16.9-34
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
16F+8R collar shift.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 760/850 L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
1404
Drive type:
4 X 4
Dimension::
4480X2050X2930 MM
Front wheel thread
1610 (usual) mm
Rear wheel thread
1608(usual) mm
Wheel Base
2480 mm
Min mass
4200 kg
Engine modeld
YTO LR6M3Z-23
Engine type
vertical,water cool, 4stroke.turbcharged
Rate power
103 kw
Tyre front/rear
12.4-24/16.9-34
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
16F+8R collar shift.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 760/850 L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
