Bulldozer SD7

Engine Model:

Cummins NT855

Engine Power:

230 HP

Operating Weight:

23800 kg

Ground pressure:

71.9 Kpa

Dozer capacity:

8.4 m3

Blade width:

3500 mm

Bulldozer SD7

Product Description

Product Parameter

Product Descrition

Application Field:

Quarries & Aggregates
Heavy infrastructure
Road Construction
Building
Recycling & Waste
Forestry
Agriculture & Landscaping

Feature:

Bulldozer SD7 Main with:

Cummins (Chong Qing) NT855-C280S10 Engine, Straight and tilting Blade, New Type Rops cabin, Pilot control

Bulldozer SD7 Introduction:

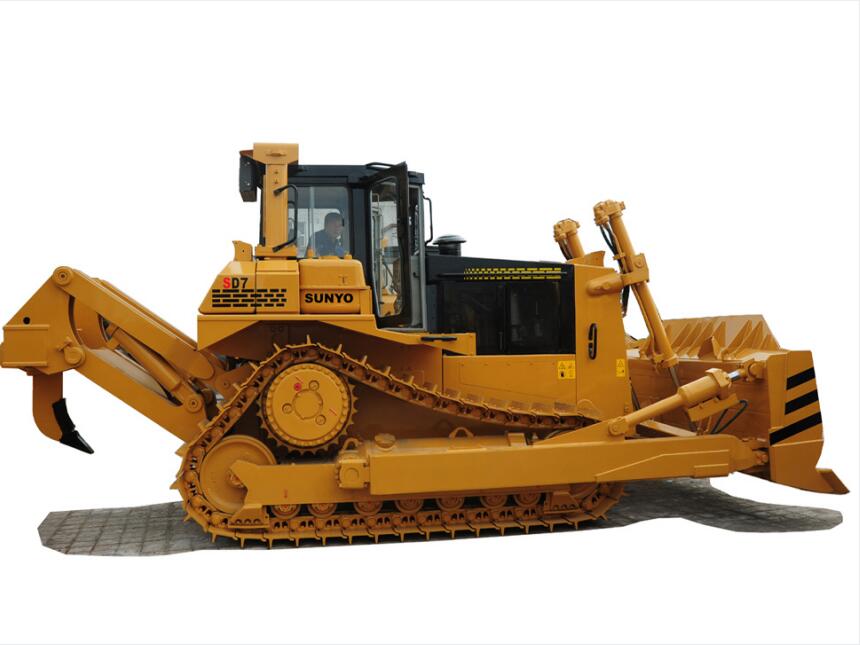

SD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair&maintenance, It relieves oil with difference pressure, the hydraulic system perfoms protecting environment and save enery with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROP,FOPS,forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.

Product Parameter
Operation weight
23800 kg
Ground pressure
71.9 Kpa
Gradient
30/25
Min ground clearance
404 mm
Dozer capacity
8.4 m3
Blade width
3500 mm
Max digging depth
498 mm
Over Dimension
5677x3500x3402 mm
dimension with ripper
7616x3500x3402 mm
Engine:
Cummins NTA855
Speed
2100 rpm
rated power
230 hp
fuel consumption
less 235 g/KW.H
track rollers
7
Track shose width
560mm
Max system pressure
18.6 Mpa
system output
194 L/min
travel speed F/R
0-10.9/0-13.2 km/h
Order Process
No.1 Confirm

Product performance
Product Price
Negotiation & Confirm

No.2 Payment

30% Paid by T/T as deposit, 70% paid by T/T before delivery; or LC at sight can be discussed.

No.3 Produce

SD7 Bulldozer
produce time:30 days, also discussed according quantity

No.4 Inspection

Before delivery
Inspection and test
make sure quality

No.4 Delivery

by sea, bulk ship or Ro-on/Ro-off ship, or Flat Rack.

No.5 Service

when you need buy parts
when you need technical support ,we supply whenever you need.
