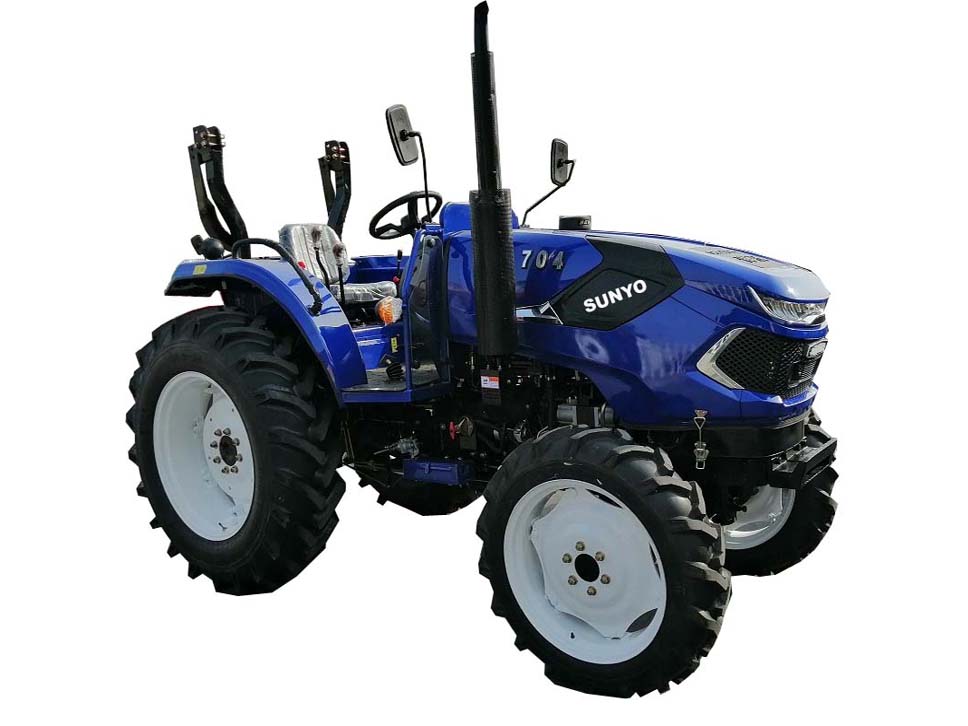

Tractor TB series

Engine Standard:

Euro 2

Gears:

12F + 12R

Clutch:

Double function

PTO:

Double speed

Drive type:

4 X 4

Steering:

Hydraulic

Tractor TE seires

Product Description

Product Parameter

Product Descrition

Application Field:

Agriculture & Landscaping

Tractor TE series


Main Features:

TB series tractor is designed for multiple works in small or medium farm. it can be matched with various implements to deal with different agriculture working codition.

It equips with chinese four-cylinder diesel engine, from 50-80hp, it has the advantage of low fuel consumption low maintenace cost and large torque output

Using central console and mature chassis and axle, the tractor is easy to control and maintain; optional side console for driving and riding comfort,

Standard with 12F+12R gearbox to meet the requirements on more rational speeds.

Standard with dual-action clutchs from 10 to 11 inches for different needs and oprations.

Optional Herringbone tires, paddy tires or other type of tires to meet your need of working conditons, ROPS , canop and cabin is optional to meet different wroking conditons.

Hydraulic power steering makes it easy to control and reduce the labor strength of operater.

Product Parameter
Model:
504
Drive type:
4 X 4
Dimension::
3700X1710X2130 MM
Front wheel thread
1250 (usual) mm
Rear wheel thread
1200, 1300(usual), 1400 mm
Wheel Base
1950 mm
Min mass
2300 kg
Engine modeld
Quanchai 495
Engine type
vertical,water cool, 4stroke.
Rate power
36.8 kw
Tyre front/rear
8.3-20/12.4-28
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
12F+12R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 540/760 or 540/1000L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
554
Drive type:
4 X 4
Dimension::
3700X1710X2130 MM
Front wheel thread
1250 (usual) mm
Rear wheel thread
1200, 1300(usual), 1400 mm
Wheel Base
1950 mm
Min mass
2300 kg
Engine modeld
Quanchai 4102
Engine type
vertical,water cool, 4stroke.
Rate power
40.5 kw
Tyre front/rear
8.3-20/12.4-28
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
12F+12R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 540/760 or 540/1000L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
604
Drive type:
4 X 4
Dimension::
3700X1710X2300 MM
Front wheel thread
1250 (usual) mm
Rear wheel thread
1200, 1300(usual), 1400 mm
Wheel Base
1950 mm
Min mass
2500 kg
Engine modeld
Quanchai 4105
Engine type
vertical,water cool, 4stroke.
Rate power
44.1 kw
Tyre front/rear
8.3-20/12.4-28
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
12F+12R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, half-independent, 540/760 or 540/1000L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
704
Drive type:
4 X 4
Dimension::
3900X1795X2300 MM
Front wheel thread
1300 (usual) mm
Rear wheel thread
1300, 1400(usual), 1500 mm
Wheel Base
2072 mm
Min mass
2700 kg
Engine modeld
Quanchai 4108
Engine type
vertical,water cool, 4stroke.
Rate power
51.4 kw
Tyre front/rear
8.3-24/14.9-30
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
12F+12R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, independent, 540/760 or 540/1000L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
804
Drive type:
4 X 4
Dimension::
3900X1795X2300 MM
Front wheel thread
1300 (usual) mm
Rear wheel thread
1300, 1400(usual), 1500 mm
Wheel Base
2072 mm
Min mass
2700 kg
Engine modeld
Quanchai 4108
Engine type
vertical,water cool, 4stroke.
Rate power
58.8 kw
Tyre front/rear
8.3-24/14.9-30
Clutch
dry-friction, dual stage
Steering
Hydraulic type
Gear Box
12F+12R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 2
PTO type and Rev
Post-position, independent, 540/760 or 540/1000L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Order Process
No.1 Confirm

Product performance
Product Price
Negotiation & Confirm

No.2 Payment

30% Paid by T/T as deposit, 70% paid by T/T before delivery; or LC at sight can be discussed.

No.3 Produce

TB tractors
produce time:20 days, also discussed according quantity

No.4 Inspection

Before delivery
Inspection and test
make sure quality

No.4 Delivery

by sea container
or by train container
40H container load 3 set.

No.5 Service

when you need buy parts
when you need technical support ,we supply whenever you need.
