Motor Grader PY165

Engine Brand:

CUMMINS

Engine Model:

6BTA5.9

Engine Power:

125 Kw

Dimension:

8305x2695x3420 mm

Operating Weight:

15000 kg

Blade lenght:

3660 mm

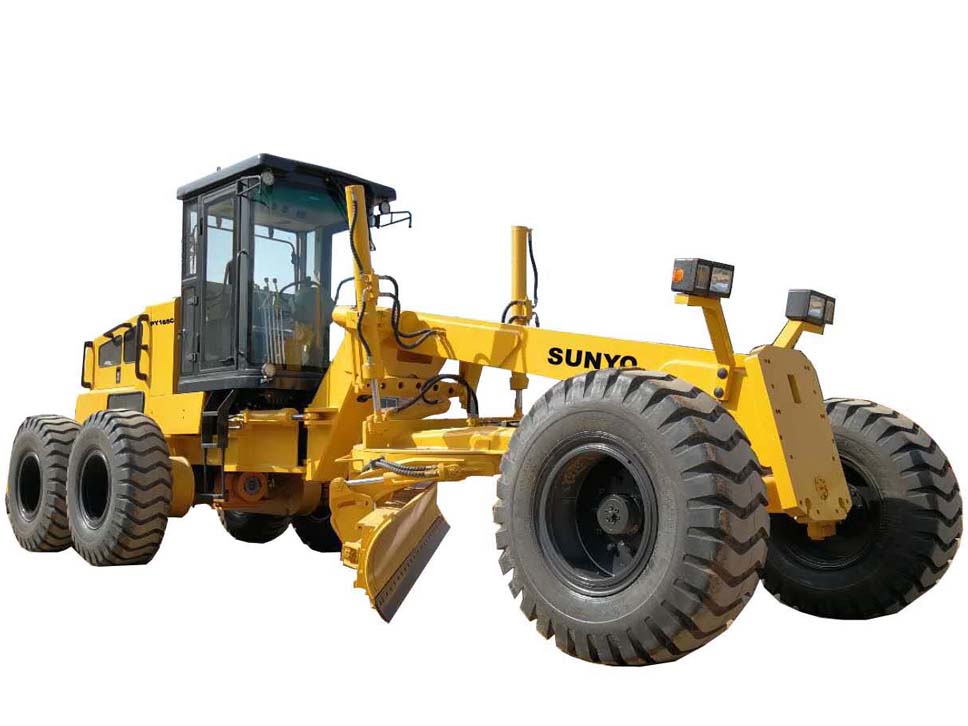

Motor Grader PY165

Product Description

Product Parameter

Product Descrition

Application Field:

Road Construction
Building
Agriculture & Landscaping

Motor Grader PY220 main with:

CUMMNINS 6BTA5.9 engine, ZF Transmission, HUSCO valve

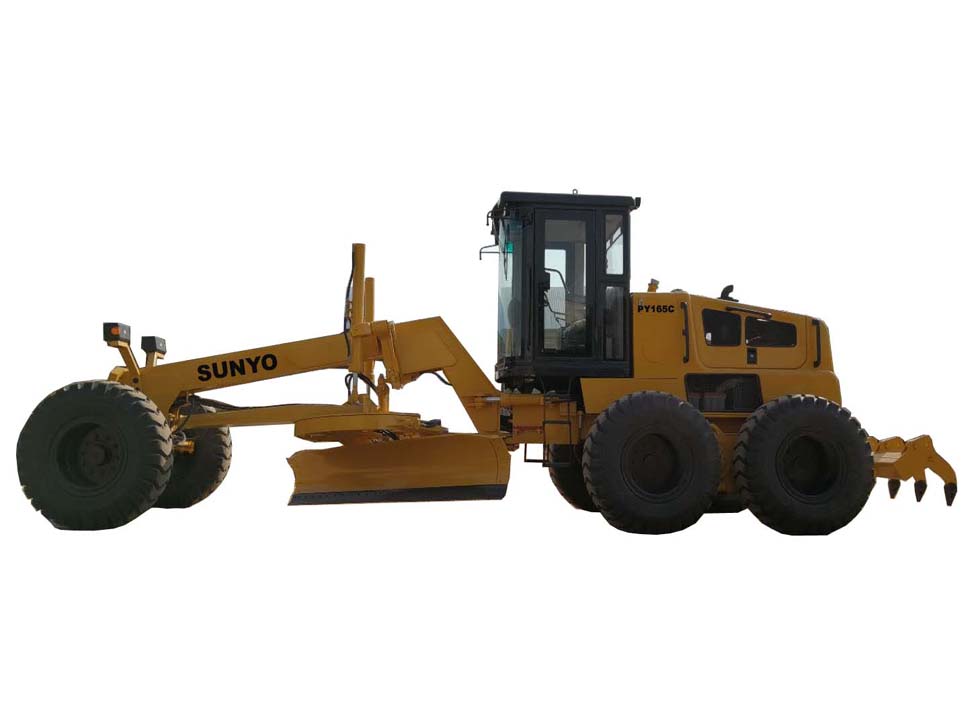

PY165C Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, Slope scraping, bulldozing, ripping, virgin land, scarifying and snow-removing etc., which is modernized construction equipment of multi -functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Main Features:
1, CUMMINS diesel engine is turbocharged and water-cooled with reliable and powerful performance feature energy.
2, Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine's working and transporting.
3, driving axle with integrated free-wheel anti-slip differential and strong roller chain Drive tandem case, Boxed oscillated steering front axle with leaned wheels.
4, popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double of the blade tip control can adjust the cutting angle depending on soil quality.
5.Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically operated pin drawing device is designed firstly in board.
6.Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7.Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8.Electro-hydraulically operated with entire instrumental monitoring system, free -maintenance OPTIMA Sweden batteries have.
9. It is optional for front bulldozing plate and rear ripper.

Product Parameter
Engine brand
CUMMINS
Engine power
125 kw
Operatng weight
15000 Kg
Max. speed
40.4 km/h
Front axle load
4150 kg
Rear axle load
10850 kg
Speed gear number
F6/R3
Min Turning radius
7500 mm
Dimension
8305x2695x3420 mm
Wheel base
5347 mm
Hydraulic pressure
18 Mpa
Blade length
3660 mm
Blade tilt angle
±90
Blade selwing angle
360
fuel tank
228 L
Hydraulic oil tank
170 L
Tire
17.5-25
Rear ripper
5 teeth
