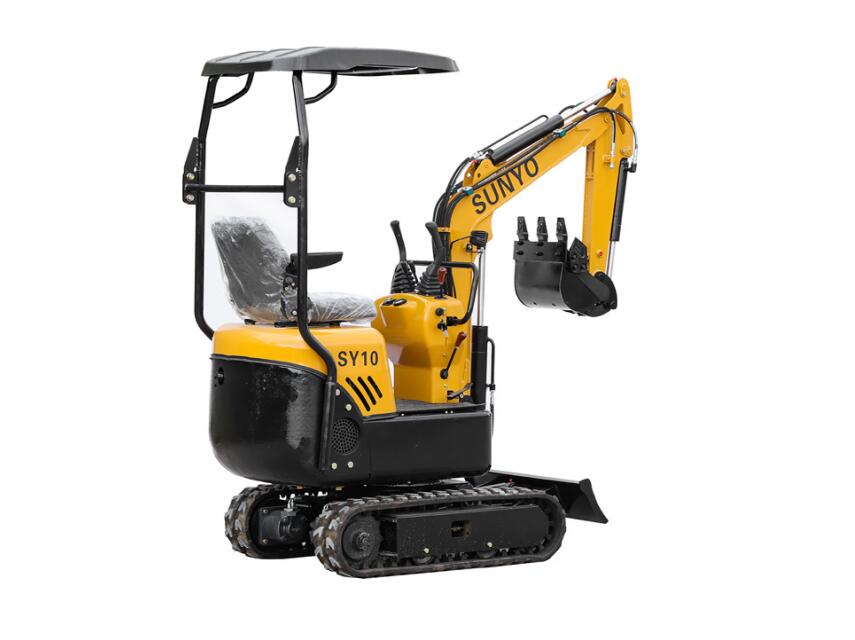

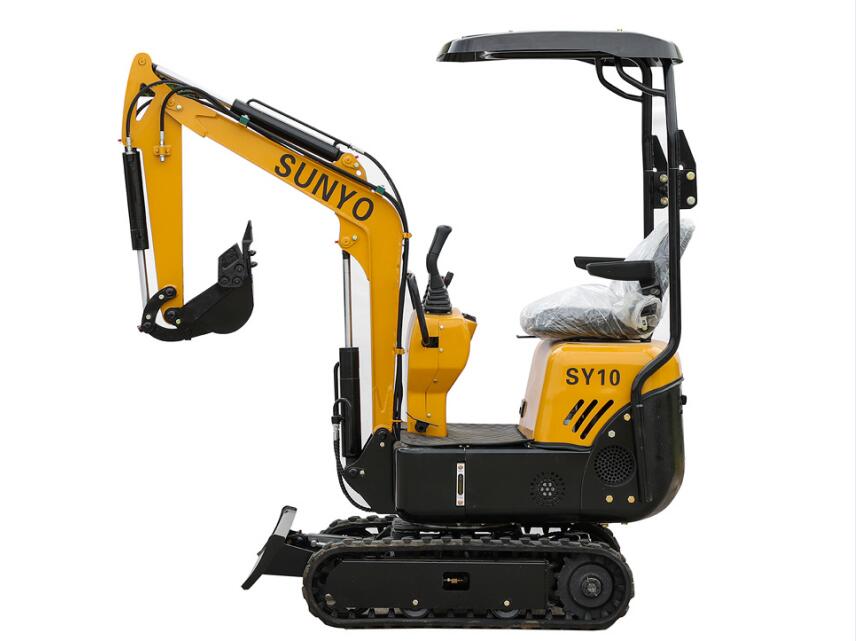

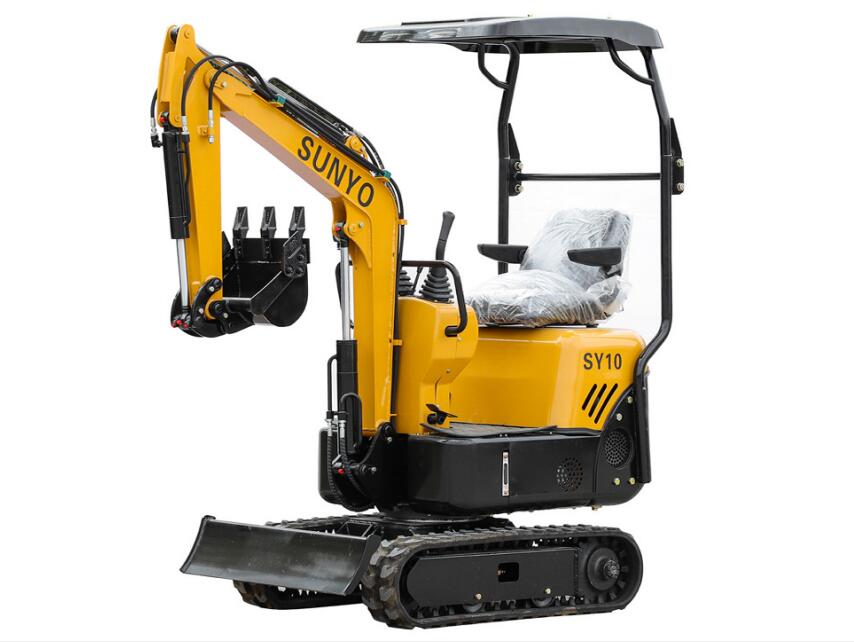

Mini Excavator SY10

Engine Model:

Changzhou Kepu

Engine Power:

7 Kw

Operating Weight:

880Kg

Dimension:

2949X930X2219 mm

Bucket capacity:

0.025 m3

Mini Excavator SY10

Product Description

Product Parameter

Product Descrition

Application Field:

Road Construction
Building
Recycling & Waste
Industrial Material Handing
Forestry

Feature:

Mini Excavator SY10 Main with:

KUBOTA engine, 26hp/18.9kw/3000rpm; bucket capacity is 0.04 cubic meter. operating weight 1450kg.

Mini Excavator SY10 Main Feature:

Changzhou Kepu Euro 5 engine,
fully hydraulically operated;
North hydraulic valve, Jining motor, Qingzhou pump,
standard with walking positioning (also called walking valve steel ball positioning);
with swing arm; with oil dispersion; engine cover , The instrument panel, guard plate, and rear counterweight are all formed by molds.
They are made of high-quality metal plates
and have good aging performance.
Most of the instrument panels in the same industry are made of plastic and have poor durability;
the operating mechanism borrows the Yanmar style;
the throttle control is On the front console,
it is easy to operate; the appearance imitates Caterpillar;

Product Parameter
Operating Weight
880 kg
Bucket capacity
0.025 m3
Dimension (LxWxH)
2949X930X2219 mm
Engine Brand
KOOP KD192F-1
Engine Power
7 kw
Fuel tank capacity
8.3 L
Hydraulic oil tank
15.3 L
Hydraulic pump
Variable piston pump
Travel speed
1.0 km/h
swing speed
13
Max climbing degree
58%
Arm digging force
4.6 KN
Bucket digging force
7.2 KN
Max digging height
2500 mm
Ground pressure
20 Kpa
track length
1233 mm
track gauge
740 mm
shose width
180 mm
Order Process
No.1 Confirm

Product performance
Product Price
Negotiation & Confirm

No.2 Payment

30% Paid by T/T as deposit, 70% paid by T/T before delivery; or LC at sight can be discussed.

No.3 Produce

SY10 Mini excavator
produce time:20 days, also discussed according quantity

No.4 Inspection

Before delivery
Inspection and test
make sure quality

No.4 Delivery

by sea,SY10 mini excavator, 40H container load 12 sets.

No.5 Service

when you need buy parts
when you need technical support ,we supply whenever you need.
