Tractor TE series

Engine Standard:

Euro 2

Gears:

(4+1)*2

Clutch:

single function

Front Tyer:

6.0-16

Rear Tyer:

9.5-24

Hydraulic pump:

Double

Tractor TE seires

Product Description

Product Parameter

Product Descrition

Application Field:

Agriculture & Landscaping

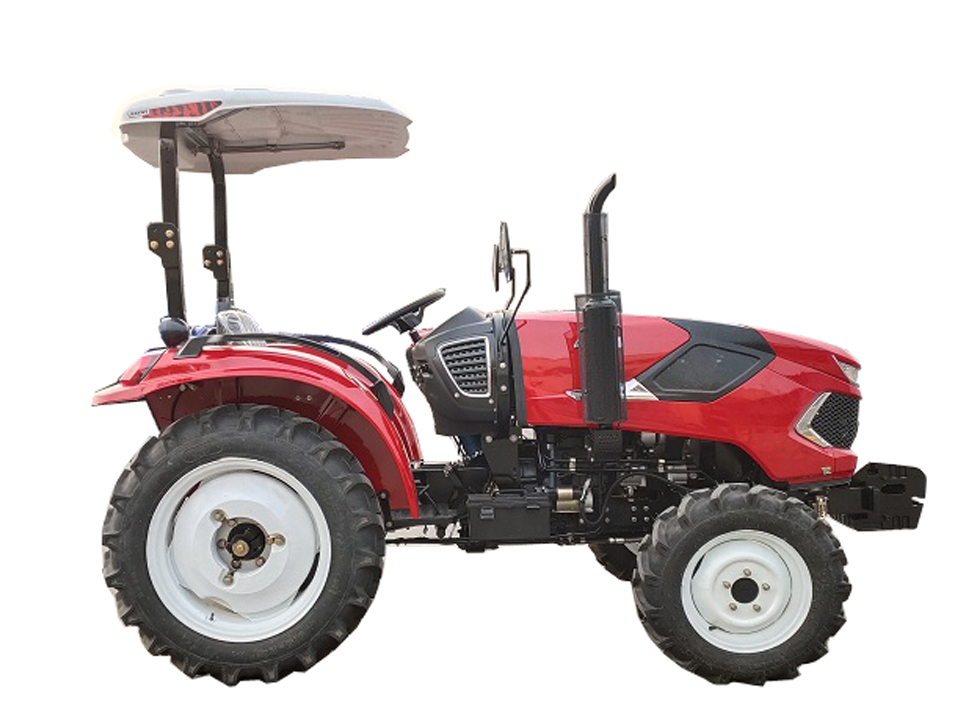

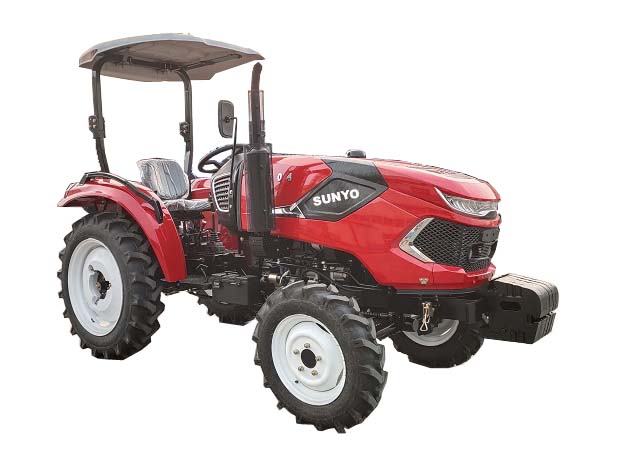

Tractor TE series


Main Features:

TE series tractor is designed for the requirements of managing lawns, garden and small farm works, it has bigger power and enhanced structure .

Equipped with chinese famous diesel engine, it has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.

Using central console and mature chassis and axle, the tractor is easy to control and maintain; optional side console for driving and riding comfort,

Standard with 8F+2R gearbox with easy operation and convenient maintenace; optional side console for driving and riding comfort.

Optional single /double action clutches for different needs and operation; optional herringbone tires, paddy tires or other type of tires to meet your working condtions.

Hydraulic power steering makes it easy to control and reduce the labor strength of operater.

Product Parameter
Model:
404
Drive type:
4 X 4
Dimension::
3350X1500X2130 MM
Front wheel thread
1200 (usual) mm
Rear wheel thread
1200 (usual) mm
Wheel Base
1800 mm
Min mass
1500 kg
Engine modeld
Laidong 4L23BT
Engine type
vertical,water cool, 4stroke.
Rate power
29.4 kw
Tyre front/rear
6.0-16/9.5-24
Clutch
dry-friction, single/dual stage
Steering
Hydraulic type
Gear Box
8F+2R Corllar, 8F+8R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 1
PTO type and Rev
Post-position, half-independent, 760/850L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
454
Drive type:
4 X 4
Dimension::
3350X1500X2130 MM
Front wheel thread
1200 (usual) mm
Rear wheel thread
1200 (usual) mm
Wheel Base
1800 mm
Min mass
1500 kg
Engine modeld
Laidong 490
Engine type
vertical,water cool, 4stroke.
Rate power
33.1 kw
Tyre front/rear
6.0-16/9.5-24
Clutch
dry-friction, single/dual stage
Steering
Hydraulic type
Gear Box
8F+2R Corllar, 8F+8R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 1
PTO type and Rev
Post-position, half-independent, 760/850L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
504
Drive type:
4 X 4
Dimension::
3515X1500X2130 MM
Front wheel thread
1200 (usual) mm
Rear wheel thread
1200 (usual) mm
Wheel Base
1920 mm
Min mass
1600 kg
Engine modeld
Laidong 4L100
Engine type
vertical,water cool, 4stroke.
Rate power
36.8 kw
Tyre front/rear
6.0-16/9.5-24
Clutch
dry-friction, single/dual stage
Steering
Hydraulic type
Gear Box
8F+2R Corllar, 8F+8R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 1
PTO type and Rev
Post-position, half-independent, 760/850L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
554
Drive type:
4 X 4
Dimension::
3515X1500X2130 MM
Front wheel thread
1200 (usual) mm
Rear wheel thread
1200 (usual) mm
Wheel Base
1920 mm
Min mass
1600 kg
Engine modeld
Laidong 4100
Engine type
vertical,water cool, 4stroke.
Rate power
40.44 kw
Tyre front/rear
6.0-16/9.5-24
Clutch
dry-friction, single/dual stage
Steering
Hydraulic type
Gear Box
8F+2R Corllar, 8F+8R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 1
PTO type and Rev
Post-position, half-independent, 760/850L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Model:
604
Drive type:
4 X 4
Dimension::
3515X1510X2130 MM
Front wheel thread
1200 (usual) mm
Rear wheel thread
1200 (usual) mm
Wheel Base
1920 mm
Min mass
1760 kg
Engine modeld
Weichai
Engine type
vertical,water cool, 4stroke.
Rate power
44.1 kw
Tyre front/rear
6.0-16/9.5-24
Clutch
dry-friction, single/dual stage
Steering
Hydraulic type
Gear Box
8F+2R Corllar, 8F+8R shuttle.
Suspention
Post Positioned Three-pint Suspension Catalogue 1
PTO type and Rev
Post-position, half-independent, 760/850L/min
PTO Spline size
135 Rectangle Spline with 6 teeth.
Order Process
No.1 Confirm

Product performance
Product Price
Negotiation & Confirm

No.2 Payment

30% Paid by T/T as deposit, 70% paid by T/T before delivery; or LC at sight can be discussed.

No.3 Produce

TE tractors
produce time:20 days, also discussed according quantity

No.4 Inspection

Before delivery
Inspection and test
make sure quality

No.4 Delivery

by sea container
or by train container
40H container load 3 set.

No.5 Service

when you need buy parts
when you need technical support ,we supply whenever you need.
