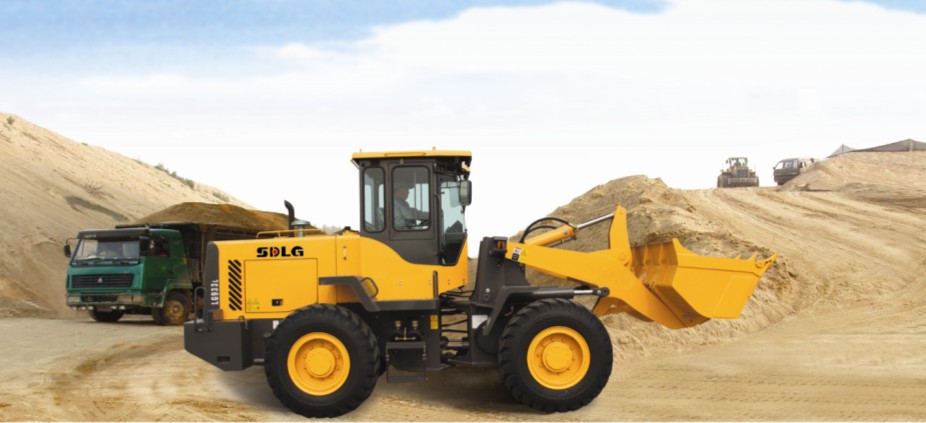

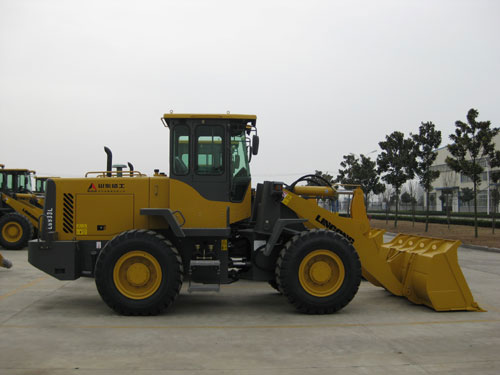

LG933 wheel loader
SDLG LG933 Chinese Wheel Loaders specifications:
Higher engine hood and wider back make repair more convenient; optimizing the radiator system and increasing the effective radiating area to promise the wheel loader work all the time under the best temperature.
Adopt top grader shock-absorbing and comfortable chairs.
Adopt soft shaft transmission control system, make it more easy to control, adopt oil pressure switch alarm to improve its reliability.
SDLG LG933 Chinese Wheel Loaders WHOLE MACHINE specifications:
| NO. |
item |
Parameter |
| 1 |
Overall working wieght |
10200kg |
| 2 |
Rated bucket capacity |
1.8CBM |
| 3 |
Rated Load |
3000kg |
| 4 |
Max. tractive force |
not less 96KN |
| 5 |
Max. breakout force |
not less 96KN |
| 6 |
Max gradeability |
30 |
| 7 |
Max. dumping height |
2950mm |
| 8 |
Dumping distance |
1020mm |
| 9 |

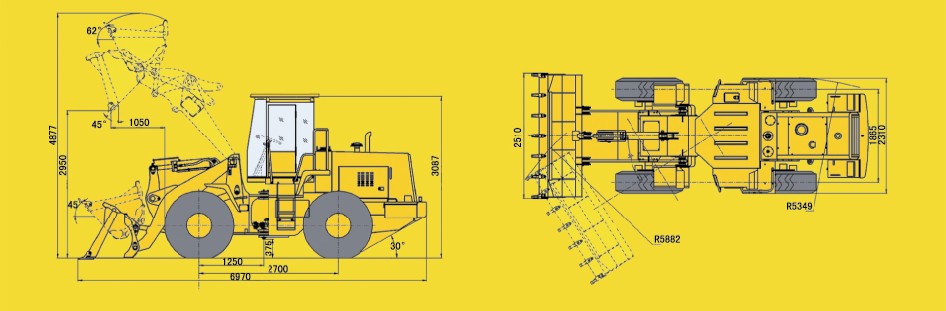

Overall dimension(L*W*H) |
6970*2510*3087 |
SDLG LG933 Chinese Wheel Loaders ENGINE specifications:
| NO. |
item |
Parameter |
| 1 |
Model |
WP6G125E23 |
| 2 |
Type |
Water cooling, fourstrocke, Inline |
| 3 |
Number of cylinder-bore/stroke |
6-105*120mm |
| 4 |
Max. torque |
500N.m |
| 5 |
Rated power |
92Kw |
| 6 |
Rated speed |
2300r/min |
| 7 |
Min. fuel-consume ratio |
less 215 g/kW.h |
SDLG LG933 Chinese Wheel Loaders TRANSMISSION SYSTEM specifications:
| NO. |
item |
Parameter |
| 1 |
Torque converter |
Single plase, 3 elements |
| 2 |
Modulus of converter |
3.25 |
| 3 |
Transmission type |
Planetary power shift |
| 4 |
Gear shift |
4 forward, 2 reverse |
| 5 |
Max speed |
40km/h |
SDLG LG933 Chinese Wheel Loaders FRONT & REAR AXLES specifications:
| NO. |
item |
Parameter |
| 1 |
Main transmission type |
Spiral gear, first stage decelerate |
| 2 |
Final decelerate type |
First stage, planetary gear decelerate |
SDLG LG933 Chinese Wheel Loaders TYRE specifications:
| NO. |
item |
Parameter |
| 1 |
Type specification |
17.5-25 |
| 2 |
Front tyre pressure |
0.333-0.353MPa |
| 3 |
Rear tyre pressure |
0.275-0.294MPa |
SDLG LG933 Chinese Wheel Loaders STEERING SYSTEM specifications:
| NO. |
item |
Parameter |
| 1 |
Type |
Articulated load-sensing hydraulic steering system |
| 2 |
Steering angle |
36 each side |
| 3 |
Min. turning radius |
Outside of bucket:5882mm
Outside of rear wheel:5349mm |
SDLG LG933 Chinese Wheel Loaders HYDRAULIC SYSTEM specifications:
| NO. |
item |
Parameter |
| 1 |
System working pressure |
16MPa |
| 2 |
Boom lifting time |
less 5.3s |
| 3 |
Total time |
less 9.2s |
SDLG LG933 Chinese Wheel Loaders BRAKE SYSTEM specifications:
| NO. |
item |
Parameter |
| 1 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
| 2 |
Parking brake |
Manual parking brake |
SDLG LG933 Chinese Wheel Loaders FILL CAPACITY specifications:
| NO. |
item |
Parameter |
| 1 |
Fuel |
140L |
| 2 |
Hydraulic oil |
130L |
