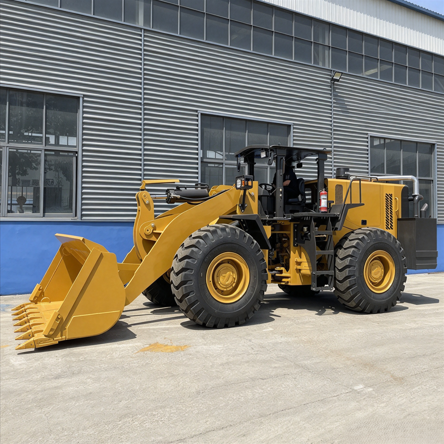

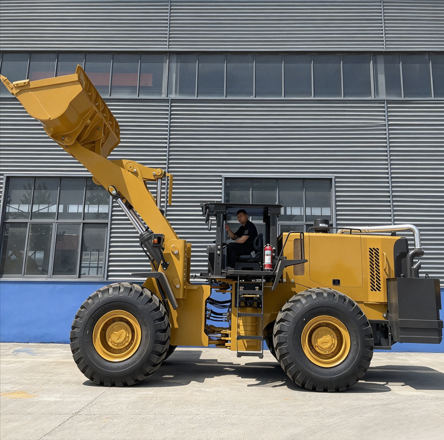

SY959 Underground Wheel Loader

Product Introduction

■ Mine safety certified product;

■ Equipped with WEICHAI WP10G220E343 turbocharged engine, optimally matched fixed-shaft power transmission gearbox and heavy-duty reduction axle. Reduced speed ratio boosts traction force by 20%, delivering stronger low-gear loading performance and higher work efficiency.

■ Air-over-hydraulic caliper disc brake with automatic bucket leveling function. Heavy-duty body provides greater rigidity and higher tire adhesion.

■ Heavy rock bucket. The main plate of the bucket uses wear-resistant steel plate manufactured by Luoyang Gangfeng for long service life.

■ Compact narrow, low and short overall dimension, suitable for operation in ultra-low and ultra-narrow roadways.

■ Standard exhaust gas purification device (optional imported three-way catalytic converter).

■ Standard water-supplement exhaust gas purification device (optional imported three-way catalytic converter).

■ Optional tire protection chains; optional side-dumping attachment; optional hydraulic breaker.

Key Features

1. WEICHAI WP10G220E343 turbocharged engine supply strong power
2. Optimally matched 320 torque converter & 428 gearbox.
3. plus 30 heavy-duty wheel-reduction axle.
4. Heavy rock bucket.

Technical Specifications

Item	Specification
Rated Load Capacity	5000 kg
Bucket Capacity	3.0 cbm
Operating Weight	17200 kg
Travel Speed	38 km/h
Gear Positions	4 F 2 R
Dimensions	815030703030 mm
wheel base	3300 mm
wheel pitch	2165 mm
Max. Dump height	3120 mm
Dump reach	1480 mm
Engine / Motor Model	WEICHAI WP10G220E343
Rated Power	162 kw
Tire model	23.5-25

Application Scenarios

Construction site material handling
Farm & agriculture work
Quarry and stone yard
Warehouse loading & unloading
Road maintenance and municipal project

Optional Attachments

We can equip this loader with different attachments for multi-purpose jobs:

Standard general bucket / rock bucket
Pallet fork for pallet cargo handling
Log grapple for timber grabbing
Snow bucket / snow blade for snow removal
Quick hitch (quick coupler), fast switch attachments

Packing & Shipment

Shipping container: 20GP /40HQ container
Loading port: Qingdao port, China
Full pre-shipment inspection before loading
Full set export documents for customs clearance

Warranty & After-sales Service

12 months warranty from the date of shipment
Online technical guidance and troubleshooting
Long-term supply of spare parts at competitive price
Pre-shipment full inspection and test run

Product FAQ

Q: What is the rated load of this wheel loader?
A:5000 kg

Q: What attachments can be installed on this loader?
A:This loader supports pallet fork, log grapple, snow bucket, quick hitch and standard bucket.

Q: How long is your warranty period?
A:We provide 12 months warranty for the machine.

Q: Can you supply spare parts after purchase?
A:Yes, we supply original spare parts all the time after sales.
