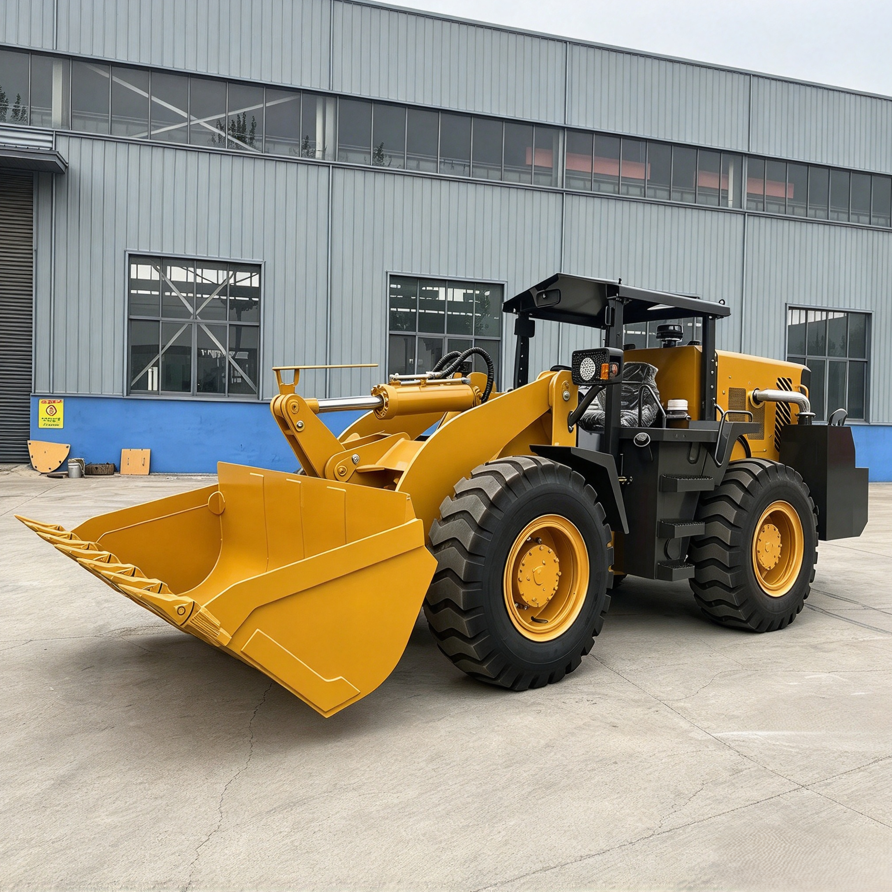

SY939 Underground Wheel Loader

Product Introduction

■ Mine safety certified product;

■ Equipped with YTO 6105 turbocharged engine for strong power. Optimally matched 320 torque converter & 428 gearbox plus 30 heavy-duty wheel-reduction axle. Reduced speed ratio increases traction force by 20%, delivering stronger low-speed loading capacity and higher working efficiency.

■ Air-over-hydraulic caliper disc brake, mining-specific tires, heavy-duty manganese steel body for superior sturdiness and high tire adhesion.

■ Heavy rock bucket. The main plate of the bucket adopts wear-resistant steel plate produced by Luoyang Gangfeng, durable for long service life.

■ Auto water-supplement exhaust gas purification device (optional imported three-way catalytic converter).

■ Optional wet brake axle; optional remote control system.

■ Optional side-dumping attachment; optional hydraulic breaker.

■ Optional tire protection chains.

Key Features

1. YTO 6105 turbocharged engine supply strong power
2. Optimally matched 320 torque converter & 428 gearbox.
3. plus 30 heavy-duty wheel-reduction axle.
4. Heavy rock bucket.

Technical Specifications

Item	Specification
Rated Load Capacity	3000 kg
Bucket Capacity	1.8 cbm
Operating Weight	11000 kg
Travel Speed	35 km/h
Gear Positions	2 F 2 R
Dimensions	670024002600 mm
wheel base	2650 mm
wheel pitch	1800 mm
Max. Torque	570 N.m/rpm
Max. tractive froce	98 KN
Max. gradeability	30 °
Fuel tank capacity	158 L
wheel tread	1800 mm
Max. Dump height	2800 mm
Dump reach	900 mm
Engine / Motor Model	YTO 6105 Turbocharging
Rated Power	103 kw
Tire model	17.5-25

Application Scenarios

Construction site material handling
Farm & agriculture work
Quarry and stone yard
Warehouse loading & unloading
Road maintenance and municipal project

Optional Attachments

We can equip this loader with different attachments for multi-purpose jobs:

Standard general bucket / rock bucket
Pallet fork for pallet cargo handling
Log grapple for timber grabbing
Snow bucket / snow blade for snow removal
Quick hitch (quick coupler), fast switch attachments

Packing & Shipment

Shipping container: 20GP /40HQ container
Loading port: Qingdao port, China
Full pre-shipment inspection before loading
Full set export documents for customs clearance

Warranty & After-sales Service

12 months warranty from the date of shipment
Online technical guidance and troubleshooting
Long-term supply of spare parts at competitive price
Pre-shipment full inspection and test run

Product FAQ

Q: What is the rated load of this wheel loader?
A:3000 kg

Q: What attachments can be installed on this loader?
A:This loader supports pallet fork, log grapple, snow bucket, quick hitch and standard bucket.

Q: How long is your warranty period?
A:We provide 12 months warranty for the machine.

Q: Can you supply spare parts after purchase?
A:Yes, we supply original spare parts all the time after sales.
