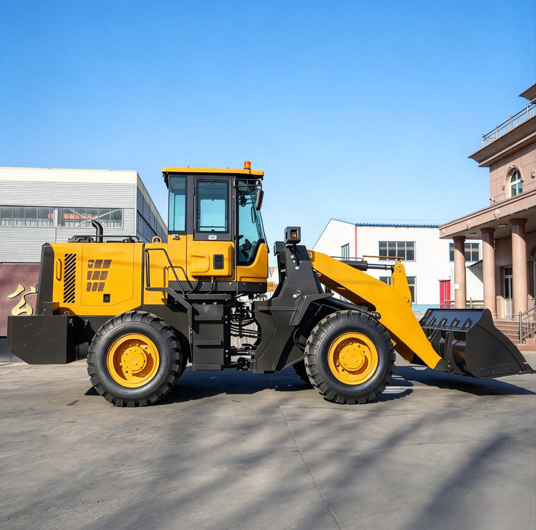

SY938 Wheel Loader
Product Introduction
SUNYO SY938 Wheel loader is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. Equipped with the CUMMINS 6BT5.9-C 150 engine meeting the requirements of China II emission standard, with strong power and high reliability;
2. Power Shift, Countershaft Type transmission case, with 4 front gear positions and 2 rear gear position. It is light and easy to operate, with long service life; with large torque ratio and high transmission efficiency; Reinforced drive axle, with large bearing capacity and high reliability.
3. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
4. Adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment; The air conditioner and ROPS&FOPS cab can be installed optionally, which ensures good comfort..
Key Features
- 1. CUMMINS 6BT5.9 engine supply strong power
- 2. Power Shift, Countershaft Type transmission.
- 3. Hydraulic pilot, and air condition.
- 4. Can equip this loader with different attachments for multi-purpose jobs
Technical Specifications
| Item | Specification |
|---|---|
| Rated Load Capacity | 3000 kg |
| Bucket Capacity | 1.8 cbm |
| Engine / Motor Model | CUMMINS 6BT5.9 |
| Rated Power | 110 kw |
| digging force | 118 KN |
| Max. Torque | 570 N.m/rpm |
| Max. tractive froce | 98 KN |
| Max. gradeability | 30 ° |
| Fuel tank capacity | 158 L |
| Tire model | 17.5-25 |
| wheel tread | 1800 mm |
| wheel base | 3100 mm |
| Operating Weight | 9800 kg |
| Dimensions | 7600*2400*3300 mm |
| Lifting Height | 3800 mm |
| Mini turning radius | 5200 mm |
| Min. Ground Clearance | 430 mm |
| Steering Angle | 30 ° |
| Dump height | 3800 mm |
| Dump reach | 1180 mm |
| Total Cycle Time | 9±0.5 s |
| Transmission Type | Power Shift, Countershaft Type |
| Gear Positions | 4 F 2 R |
| Control Method | Hydraulic pilot |
| Travel Speed | 40 km/h |
| Optional Attachments | Bucket, pallet fork, grapple, snow bucket, quick hitch |
Application Scenarios
- Construction site material handling
- Farm & agriculture work
- Quarry and stone yard
- Warehouse loading & unloading
- Road maintenance and municipal project
Optional Attachments
We can equip this loader with different attachments for multi-purpose jobs:
- Standard general bucket / rock bucket
- Pallet fork for pallet cargo handling
- Log grapple for timber grabbing
- Snow bucket / snow blade for snow removal
- Quick hitch (quick coupler), fast switch attachments
Packing & Shipment
- Shipping container: 20GP /40HQ container
- Loading port: Qingdao port, China
- Full pre-shipment inspection before loading
- Full set export documents for customs clearance
Warranty & After-sales Service
- 12 months warranty from the date of shipment
- Online technical guidance and troubleshooting
- Long-term supply of spare parts at competitive price
- Pre-shipment full inspection and test run
Product FAQ
Q: What is the rated load of this wheel loader?
A:3000 kg
Q: What attachments can be installed on this loader?
A:This loader supports pallet fork, log grapple, snow bucket, quick hitch and standard bucket.
Q: How long is your warranty period?
A:We provide 12 months warranty for the machine.
Q: Can you supply spare parts after purchase?
A:Yes, we supply original spare parts all the time after sales.
Related Products

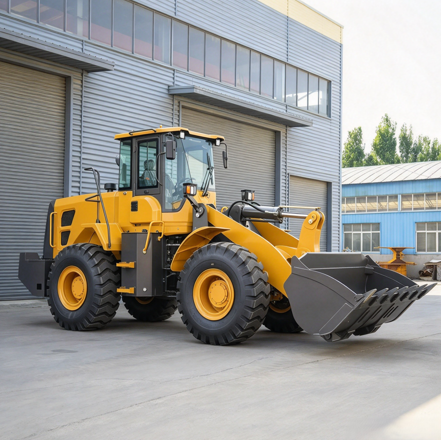

SY958 Wheel Loader
View Details
SY938 Wheel Loader
View Details

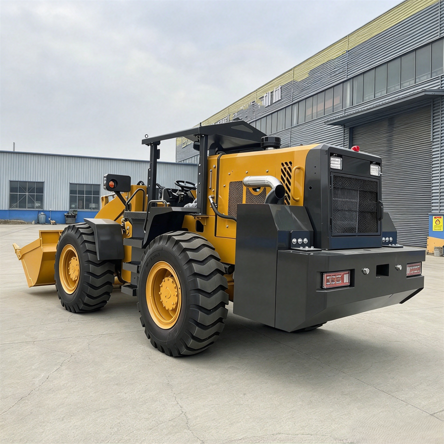

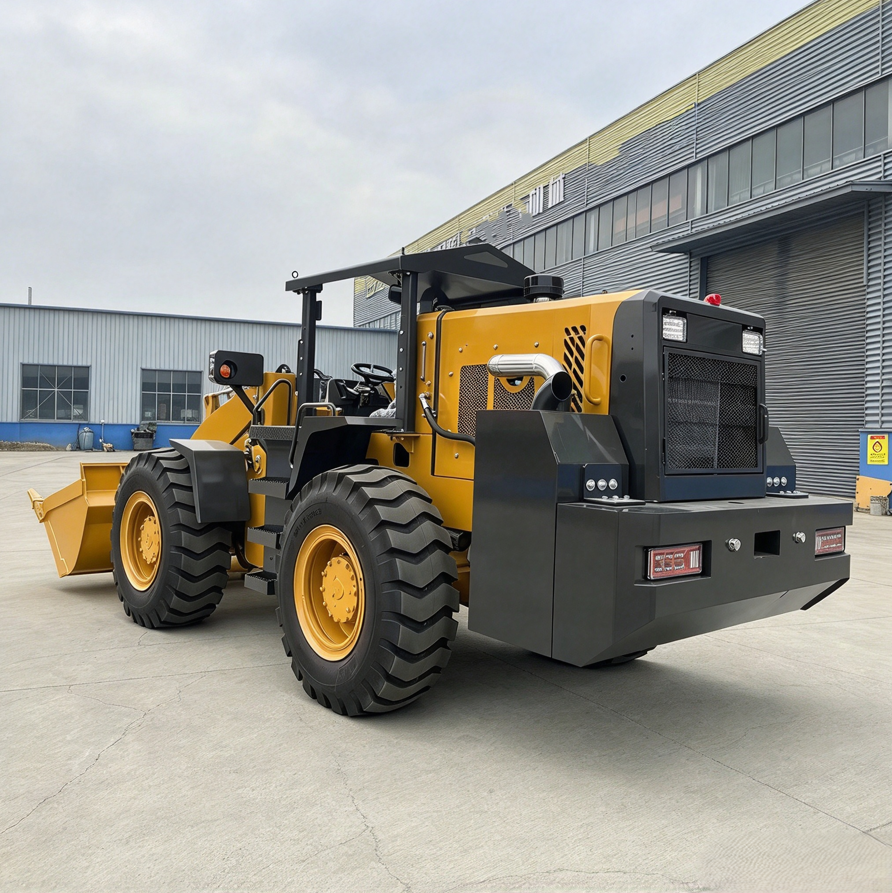

SY939 Underground Loader
