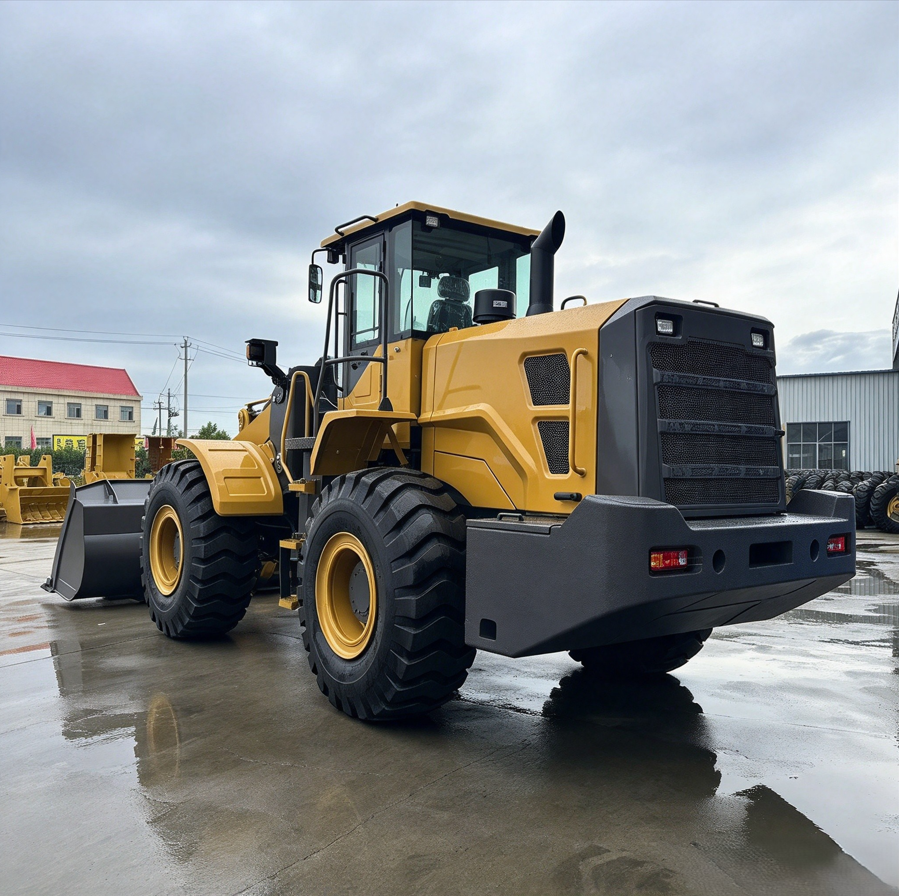

SY958 Wheel Loader
Product Introduction
High Efficiency: WEI CHAI WP10G220E21 Engine . The energy-saving engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%.High market share and high reliability; Low maintenance cost.
High Reliability: planetary transmission, F2/R1, Hydraulic power shift. Simple operation, high transmission efficiency. After years of market validation, long service life. Adjusted the gearbox reduction ratio to improve the traveling speed and V-loading efficiency.
Heavy-Duty: special reinforced drive axle. Main transmission and wheel deceleration transmission ratio optimization, to increased reliability by more than 60%. Stable and reliable performance, convenient operation and maintenance.
Comfortability: New designed H-series cabin .The visibility, the accessibility of function switch , the comfortability and the sealability of cabin has improved significantly.
Key Features
- 1. WEI CHAI WP10G220E21 engine supply strong power
- 2. Power Shift, Countershaft Type transmission.
- 3. Hydraulic pilot, and air condition.
- 4. Can equip this loader with different attachments for multi-purpose jobs
Technical Specifications
| Item | Specification |
|---|---|
| Rated Load Capacity | 5000 kg |
| Bucket Capacity | 3.0 cbm |
| Engine / Motor Model | WEI CHAI WP10G220E21 |
| Rated Power | 162 kw |
| digging force | 170 KN |
| Max. Torque | 920 N.m/rpm |
| Max. tractive froce | 152 KN |
| Max. gradeability | 30 ° |
| Fuel tank capacity | 300 L |
| Tire model | 23..5-25 |
| wheel tread | 2265 mm |
| wheel base | 30200 mm |
| Operating Weight | 16600 kg |
| Dimensions | 7880*3000*3350 mm |
| Mini turning radius | 6000 mm |
| Min. Ground Clearance | 550 mm |
| Steering Angle | 28 ° |
| Dump height | 3400 mm |
| Dump reach | 1260 mm |
| Total Cycle Time | 9±0.5 s |
| Min. Turning Radius (Outside of Bucket) | 6000 mm |
| Transmission Type | Power Shift, Countershaft Type |
| System working pressure | 158 Mpa |
| Gear Positions | 2 F 1 R |
| Control Method | Hydraulic pilot |
| Travel Speed | 38 km/h |
| Optional Attachments | Bucket, pallet fork, grapple, snow bucket, quick hitch |
Application Scenarios
- Construction site material handling
- Farm & agriculture work
- Quarry and stone yard
- Warehouse loading & unloading
- Road maintenance and municipal project
Optional Attachments
We can equip this loader with different attachments for multi-purpose jobs:
- Standard general bucket / rock bucket
- Pallet fork for pallet cargo handling
- Log grapple for timber grabbing
- Snow bucket / snow blade for snow removal
- Quick hitch (quick coupler), fast switch attachments
Packing & Shipment
- Shipping container: 20GP /40HQ container
- Loading port: Qingdao port, China
- Full pre-shipment inspection before loading
- Full set export documents for customs clearance
Warranty & After-sales Service
- 12 months warranty from the date of shipment
- Online technical guidance and troubleshooting
- Long-term supply of spare parts at competitive price
- Pre-shipment full inspection and test run
Product FAQ
Q: What is the rated load of this wheel loader?
A:5000 kg
Q: What attachments can be installed on this loader?
A:This loader supports pallet fork, log grapple, snow bucket, quick hitch and standard bucket.
Q: How long is your warranty period?
A:We provide 12 months warranty for the machine.
Q: Can you supply spare parts after purchase?
A:Yes, we supply original spare parts all the time after sales.
Related Products
SY938 Wheel Loader
View Details
SY958 Wheel Loader
View Details

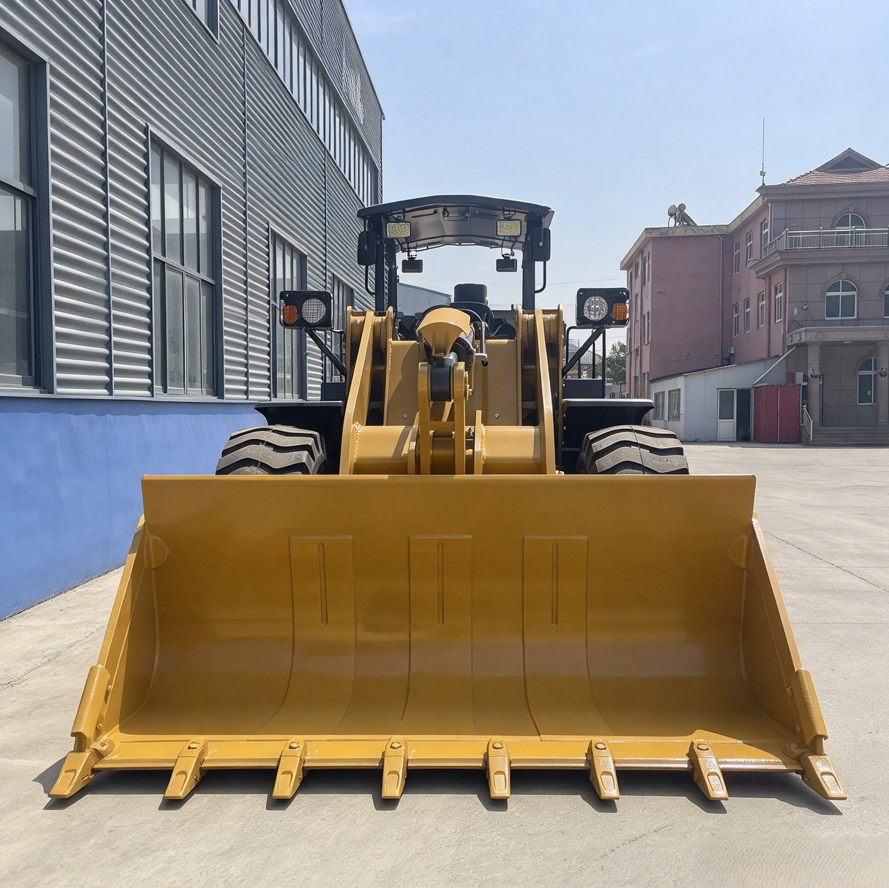

SY959 Underground Loader
