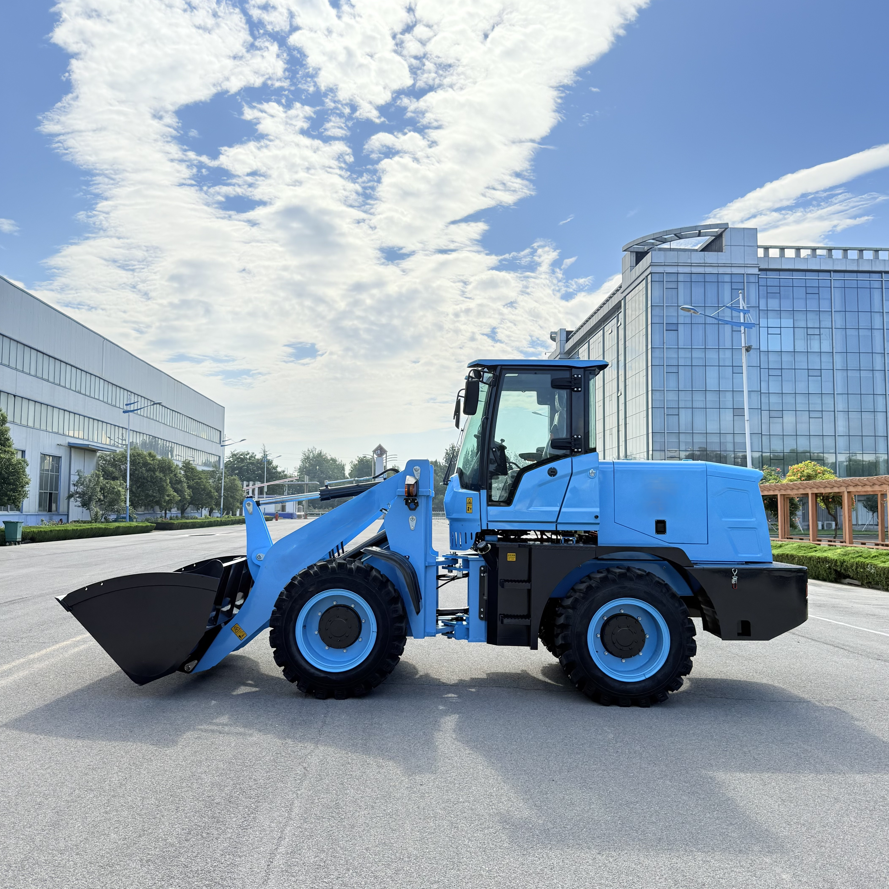

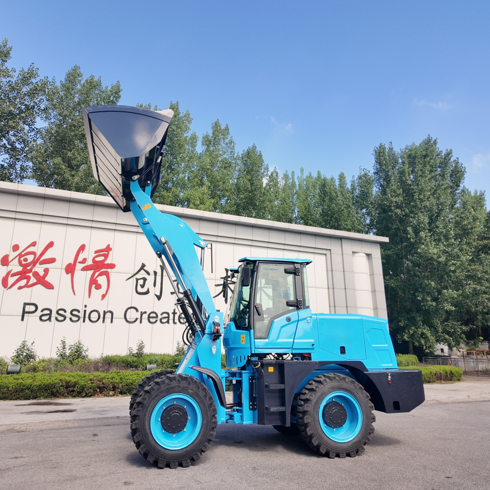

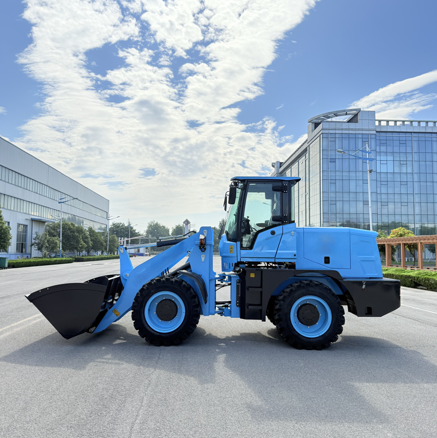

SY920 Electric Wheel Loader

Product Introduction

This is our 2.2-ton electric wheel loader, newly designed with green new energy power.

It is equipped with a 1.2 m³ bucket, featuring a reinforced frame, strong power, and durable performance.

Energy-saving, low-emission, and environmentally friendly, it is ideal for construction, industrial yards, and material handling operations.elivering strong power output, the machine achieves energy conservation and emission reduction, which is environmentally friendly for construction, farm and yard work.

Key Features

1. Zero emission mini electric wheel loader
2. Featuring a reinforced frame, strong power, and durable performance.
3. Energy Saving & Low Emission, Eco-Friendly
4. Can equip this loader with different attachments for multi-purpose jobs.

Technical Specifications

Item-perfomance	Specification
Minimum Turning Radius	5000 mm
Theoretical Gradeability	15 °
Maximum Travel Speed	32 km/h
Maximum Bucket Dumping Height	3550 mm
Total Cycle Time	≤9.9 s
Wheelbase	2380 mm
Dumping Distance	800 mm
Dumping Angle	35.1 °
Dimension	6000x2080x2890 mm
Minimum Ground Clearance	350 mm
Rated Load Capacity	2200 kg
Operating Weight	6500 kg
Bucket Length, Depth, Height	2000.458.860 mm
Bucket Capacity	1.2 cbm
Item-Working data System	Specification
Travel Motor	35 kw
Working Motor (Dual Motors)	25KwX2
Travel Controller	450 A
Working Controller	350AX2
Single-Cylinder 12V Converter	500 A
Gear Pump Flow Rate	32mL*2
Hydraulic Oil Cooler	yes
Item-Transmission System	Specification
Transmission Type	DE20 (High/Low Speed)
Number of Gears	2- (Front) / 2 (Rear)
Brake Type	Hydraulic Braking
Axles	Electric-Specific Large Wheel-Side Reducer
Tire Model	16/70-20
Front/Rear Tire Pressure	0.33 / 0.3 Mpa
Charger:	153.6A / 100A
Charging Speed: 20% to 100%	4 hours 50 minutes
Item-Battery Tank capacity System	Specification
Battery	153.6V/460AH/70 kw
Theoretical Hydraulic Oil Capacity	68.5 L
Axle (Single)	14 L
Transmission Gear Oil	24 L
Item-Steering System	Specification
Steering Type	Hydraulic steering
Steering Angle	30±1 °
System Operating Pressure	16 Mpa

Application Scenarios

Construction site material handling
Farm & agriculture work
Quarry and stone yard
Warehouse loading & unloading
Road maintenance and municipal project

Optional Attachments

We can equip this loader with different attachments for multi-purpose jobs:

Standard general bucket / rock bucket
Pallet fork for pallet cargo handling
Log grapple for timber grabbing
Snow bucket / snow blade for snow removal
Quick hitch (quick coupler), fast switch attachments

Packing & Shipment

Shipping container: 20GP /40HQ container
Loading port: Qingdao port, China
Full pre-shipment inspection before loading
Full set export documents for customs clearance

Warranty & After-sales Service

12 months warranty from the date of shipment
Online technical guidance and troubleshooting
Long-term supply of spare parts at competitive price
Pre-shipment full inspection and test run

Product FAQ

Q: What is the rated load of this wheel loader?
A:2200 kg

Q: What attachments can be installed on this loader?
A:This loader supports pallet fork, log grapple, snow bucket, quick hitch and standard bucket.

Q: How long is your warranty period?
A:We provide 12 months warranty for the machine.

Q: Can you supply spare parts after purchase?
A:Yes, we supply original spare parts all the time after sales.
