SY956 wheel loader
SY956 wheel loader specifications:
| NO. | item | Parameter |
| 1 | Rated loading | 5000kg |
| 2 | overall weight | 16800kg |
| 3 | Rated bucket capacity | 3CBM |
| 4 | Maximum tractive force | more than 152KN |
| 5 | Maximum breakout force | more than 170KN |
| 6 | Maximum grade ability | 30 degree |
| 7 | Maximum dump height | 3150mm |
| 8 | Maximum dump reach | 125mm |
| 9 | Overall dimension (L*W*H) | 7920*3050*3400mm |
| 10 | Minimum turning radius | 6640mm |
| 11 | Engine model | Cummins 6CTAA8.3-C215 |
| 12 | Engine type | Four stroke water cooling injection pressure boost |
| 13 | No. of cylinder-bore/stroke | 6-114*135mm |
| 14 | Engine rated power/ | 160kw/220r/min |
| 15 | Maximum torque | 980N.m/1500rpm |
| 16 | Min fuel-consume ratio | less 215g/kw.h |
| 17 | Torque converter | YJ375 |
| 18 | gearbox mode | planetary |
| 19 | gear shift | 2 forward shift 1 reverse shift |
| 20 | Maximum speed | 38km/h |
| 21 | Main reducing spiral | bevel gear grade 1reduction |
| 22 | Decelerating mode | Planetary reduction,grade 1 |
| 23 | Wheel base (mm) | 3200mm |
| 24 | Wheel tread (mm) | 2250mm |
| 25 | Ground clearance | 450mm |
| 26 | System working pressure | 18MPa |
| 27 | Boom lifting time | 5.95s |
| 28 | Total time | 10.95smore/less0.5s |
| 29 | Fuel tank capacity | 300L |
| 30 | function of leveling automatically | yes |
| 31 | Service brake | air assist disc brake on 4 wheels |
| 32 | Parking brake | Manual disk brake |
| 33 | Type specification | 23.5-25 |
| 34 | Front tyre pressure | 0.4Mpa |
| 35 | Rear tyre pressure | 0.35Mpa |
More SY956 pictures

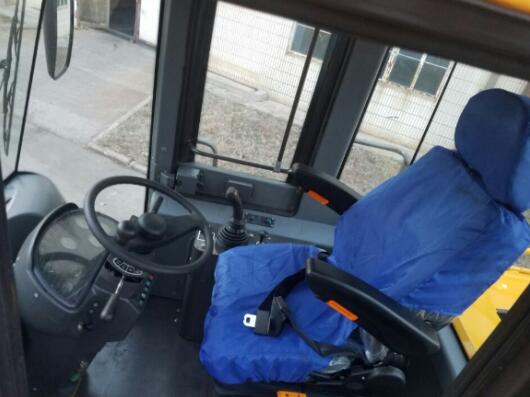

Cabin:

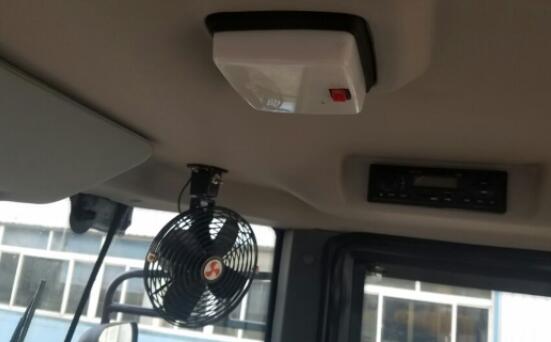

Fan :

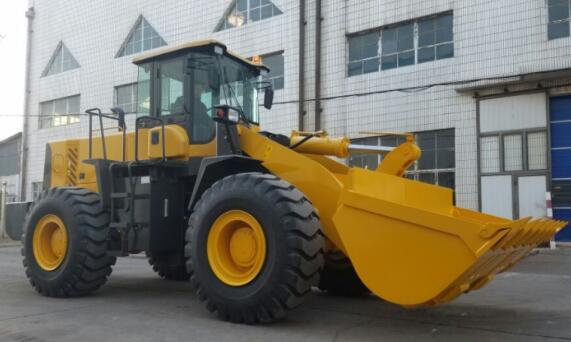

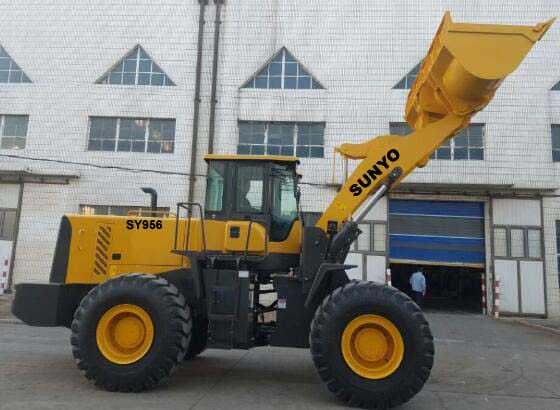

SY956:
